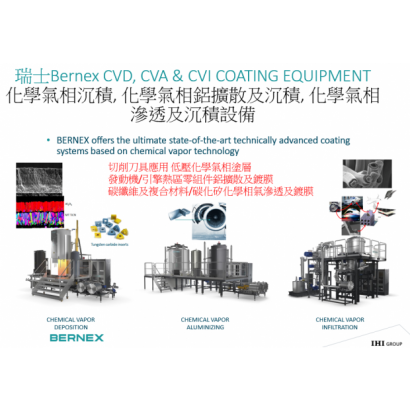

應用在切削刀具, 航太零件, 和 複合材料上.
Aerospace coating applications:
In the aerospace market, there is a need for all types of coatings:
-
Honeycomb seals (CVA) -
High pressure turbines blades and vanes (CVI and CVA) -
Low pressure turbine blades and vanes (CVI and CVA) -
Combustion chamber components (CVI and CVA) -
Heat shields (CVI) -
Nozzle materials (CVI) -
Wear resistant pipes (CVI) -
All fibre-linked constructions (CVI)
Bernex developed CVA in the 1990s and has had substantial success in both the Asian and Western markets. Ongoing developments have recently resulted in the launch of chemical vapor infiltration (CVI) batch machines for porous materials, and continuous CVI for fiber bundles.

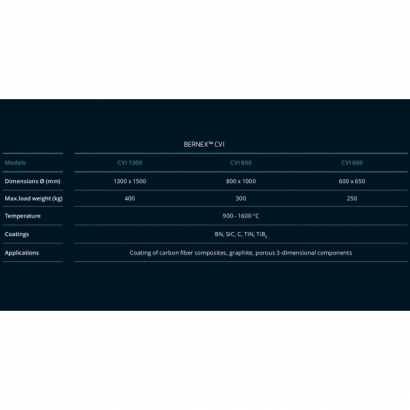

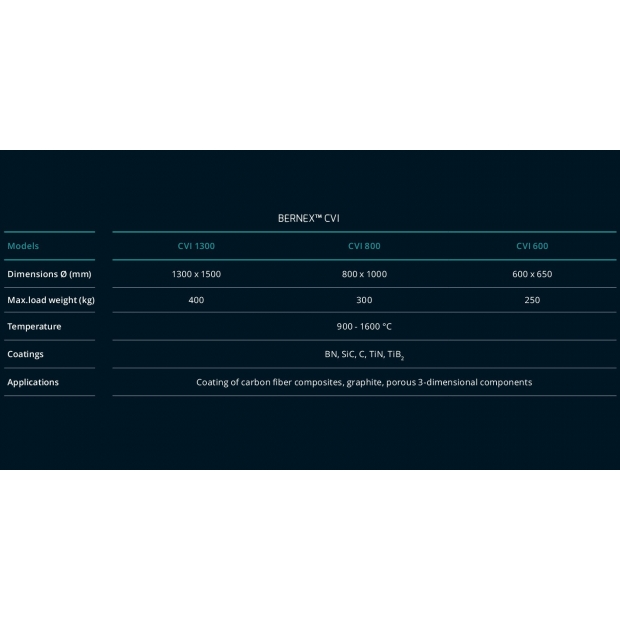

CVI machine coating:
- Boron nitride (BN) coating technology
- Pyrolytic carbon (p-C) coating technology
- Silicon nitride (Si3N4) coating technology
- Silicon carbide (SiC) coating technology
Optional: Titanium nitride (TiN) and titanium borides (TiB2)
